Results Discussion:

The difference in wax hardness can be easily resolved with the Shore D durometer

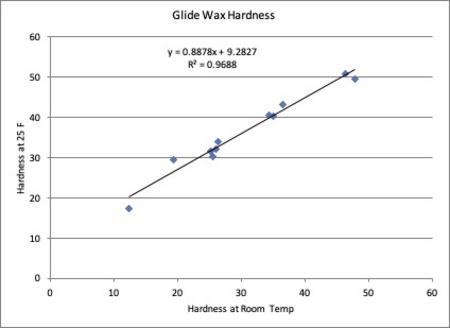

A strong correlation was seen between room temperature and 25 Deg F measurements on the subset of waxes so the results at room temp should be representative of hardness at colder temperatures

testing method using the shore D durometer

1. A flat surface was created on the wax block by heating it against a waxing iron

2. Five measurements were taken at different locations on the wax block

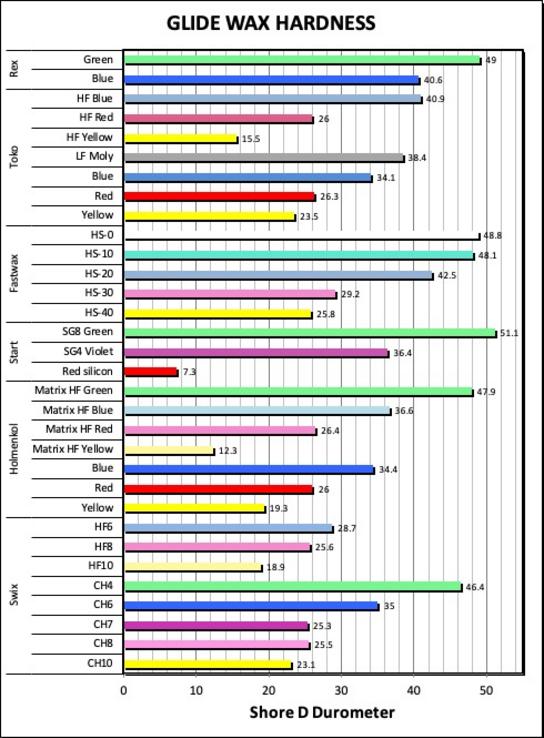

3. Average result of the 5 measurements shown in the chart below

4. A subset of the waxes were placed in a 25 Deg F freezer and the hardness measured again when the wax was cold (2nd chart below)

More Info:

hhttps://en.wikipedia.org/wiki/Shore_durometerere.
